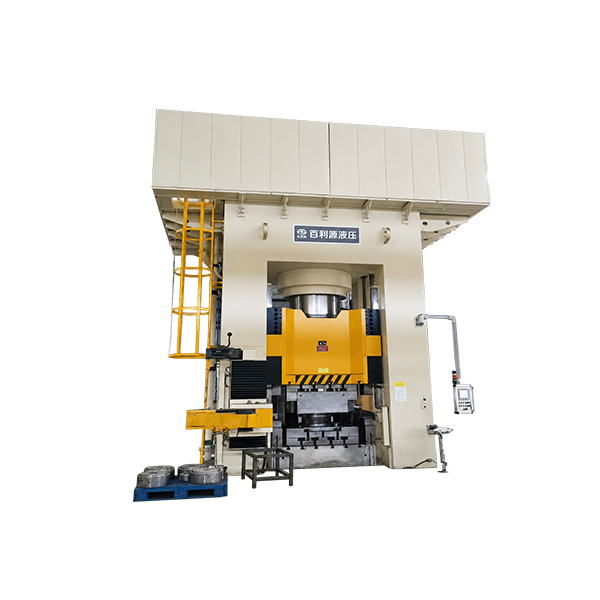

YB61 Frame Series Cold Extrusion Forming Press
Main cylinder integrated with a rapid approach cylinder
Standard Configuration
-
Main hydraulic cylinder combined with a rapid approach cylinder for efficient forming operations
-
Separate hydraulic oil cooling system for stable operation during continuous production
-
PLC-based control system with Human-Machine Interface (HMI) for convenient parameter setting and machine management
-
Infrared light curtain protection system for enhanced operator safety
Applications
The YB61 Frame Series Cold Extrusion Forming Press is designed for industrial component production and is suitable for a wide range of applications, including:
-
Automotive components
-
Hardware products
-
Aerospace components
-
Electronic components
-
Electrical fittings
-
Mining equipment parts
-
Other industrial components
The press is engineered for cold extrusion forming of steel, copper, aluminum, stainless steel, and other applicable materials. Its high-force forming capability makes it suitable for demanding cold extrusion processes where controlled forming performance and dimensional consistency are required.
Control and Production Features
-
High-speed servo control technology helps improve machine response while reducing energy consumption
-
Digital adjustment of pressure, stroke, and other forming parameters supports precise process control
-
Tooling and mold parameters can be stored in the control system for quick retrieval during product changeovers
-
Motion curves can be viewed in real time through the control interface, allowing operators to monitor forming conditions and optimize production processes
Technical Specifications
| Item | YBL-1000T | YBL-1250T | YBL-1600T | YBL-2500T | YBL-3000T |
|---|---|---|---|---|---|
| Nominal Force | 10000 kN | 12500 kN | 16000 kN | 25000 kN | 30000 kN |
| Maximum Working Pressure | 25 MPa | 25 MPa | 25 MPa | 25 MPa | 25 MPa |
| Main Cylinder Stroke | 600 mm | 600 mm | 600 mm | 700 mm | 700 mm |
| Maximum Daylight Opening | 1300 mm | 1300 mm | 1400 mm | 1500 mm | 1500 mm |
| Effective Table Size (L-R) | 960 mm | 1100 mm | 1160 mm | 1450 mm | 1700 mm |
| Effective Table Size (F-B) | 1150 mm | 1200 mm | 1350 mm | 1650 mm | 1800 mm |
| Rapid Approach Speed | 320 mm/s Adjustable | 320 mm/s Adjustable | 320 mm/s Adjustable | 300 mm/s Adjustable | 300 mm/s Adjustable |
| Pressing Speed | 18–33 mm/s | 18–33 mm/s | 18–32 mm/s | 18–33 mm/s | 18–34 mm/s |
| Return Speed | 300 mm/s Adjustable | 300 mm/s Adjustable | 300 mm/s Adjustable | 280 mm/s Adjustable | 280 mm/s Adjustable |
| Ejector Force | 800 kN | 800 kN | 1000 kN | 1200 kN | 1500 kN |
| Ejector Stroke | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm |
| Servo Motor Power | Approx. 53 kW × 2 | Approx. 75 kW × 2 | Approx. 75 kW × 2 + 48 kW | Approx. 75 kW × 4 | Approx. 75 kW × 5 |
| Hydraulic Oil Cooling Method | Continuous plate-type water cooler or industrial oil chiller, optional according to customer requirements | Same | Same | Same | Same |
Product Advantages
High-Force Frame Structure
The YB61 Frame Series is configured for high-load forming applications and provides the required pressing force for cold extrusion production of different industrial components.
Servo-Assisted Operation
The servo drive system supports fast approach and return movements while allowing digital control of key forming parameters. This configuration helps shorten production cycles and maintain consistent processing conditions.
Programmable Process Management
The PLC and HMI system provide centralized control of pressure, stroke, motion, and other production parameters. Multiple tooling data profiles can be stored and recalled when changing products.
Process Monitoring
Real-time motion curve display allows operators to observe machine movement during the forming cycle. This provides useful process information for production monitoring and parameter optimization.
Integrated Safety Protection
The machine incorporates infrared light curtains and two-hand controls to reduce operator exposure to hazardous areas during machine operation. The PLC also monitors critical operating conditions such as system pressure and hydraulic oil temperature.
FAQ
Q1: What advantages does extrusion forming offer for manufacturing constant velocity (CV) joints compared with conventional hot or cold forging?
A: Extrusion forming combines characteristics of cold extrusion and hot forging. The forming force is lower than that generally required for cold extrusion, which can help reduce die wear. At the same time, it can provide better dimensional accuracy and surface quality than hot forging. The resulting components can approach the required final geometry, reducing the amount of subsequent machining and, in some cases, eliminating additional machining operations.
Q2: How can servo-drive technology increase production efficiency for ball cage production lines?
A: Servo-drive systems provide fast approach and return movements, with speeds of up to 420 mm/s, helping reduce the cycle time required for individual parts. Digital control of forming force and stroke also improves process consistency, helps reduce scrap, and supports continuous high-speed production, including 24/7 operation.
Q3: Can YBW presses be adapted for different CV joint sizes and product types?
A: Yes. The YBW series covers a tonnage range of 500 to 1,200 tons. Depending on the tooling configuration and production requirements, the bolster dimensions, effective working area, stroke, and daylight opening can be customized. The PLC control system can also store multiple tooling data profiles, making product and tooling changeovers more convenient.
Q4: What safety systems are available for high-pressure forming operations?
A: The machine uses sensitive infrared light curtains together with two-hand controls to provide operator protection during operation. The PLC continuously monitors system pressure and hydraulic oil temperature. When abnormal conditions are detected, the control system can activate alarms and automatic shutdown functions to help prevent overload and protect the equipment.
Q5: What after-sales service is available for overseas customers?
A: Overseas customers can receive comprehensive technical support, including 24/7 remote assistance and video guidance for machine installation. On-site installation and commissioning can also be arranged when required, with support from experienced engineers. Spare parts lists and maintenance manuals are provided to help customers maintain the equipment and minimize production downtime.
