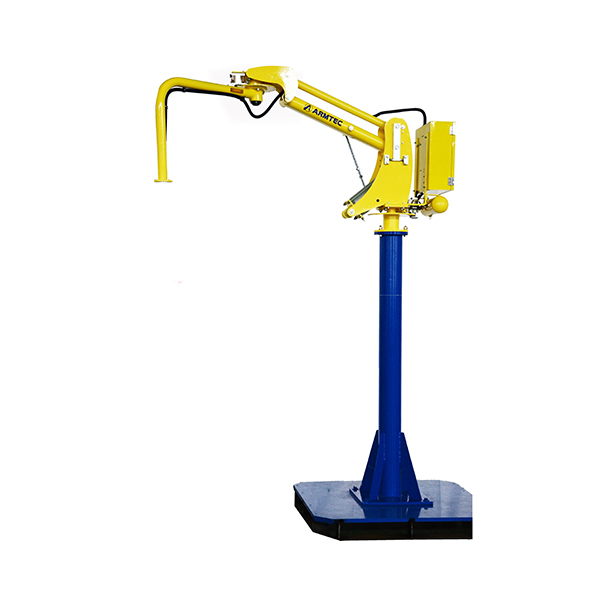

RA 100
The RA100 is our compact rigid-arm lifting device, specifically designed for easy handling and movement of off-set loads in a weightless condition.
The RA100 can be supplied with a wide variety of gripping end effector tools to grip most loads for example: vacuum suction, mechanical or pneumatic clamps, magnets, scissor grips, hooks, mandrels and similar.
At Posilift, safety is our highest priority and an essential element embedded in every product we use. The RA100 is CE certified and developed in strict accordance with UNI EN standards, EC directives, and the full range of safety guidelines and markings.
|
Load capacity (Kg) |
10Kg-125Kg |
|
Vertical lift (mm) |
1mm-1400mm |
|
Max radius (mm) |
1200mm-2800mm |
|
Supply pressure (MPa) |
0.6MPa-0.7MPa |
|
Noise (Db) |
<70Db |
|
Air supply (μm) |
Filter compressed air (filtration accuracy 40 μ m), no lubrication |
