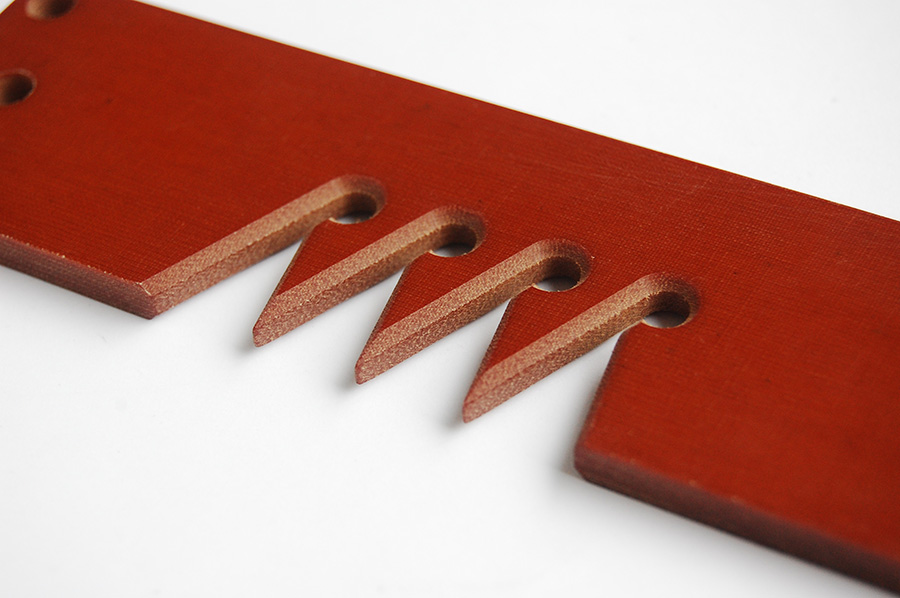

Phenolic muslin resin laminate WS-PLE
Performance and use: High-pressure laminate with good performance, suitable for small mechanical parts and electronic components; temperature resistant to 135°C
Product name: Phenolic muslin resin laminate
Model: WS-PLE
Implementation standard:
IEC/DIN EN 60893 PFCC204
BS 2572 F5
NEMA LE
Sheet specifications are 2440 x1220mm and 1220x1020mm
Tolerance +/- 20mm
Thickness range is 0.2 to 100mm
Thickness tolerance is in accordance with DIN EN 60893-3-4 clause
Technical indicators:
|
Mechanical properties |
Unit |
Value |
Test norm |
|
Flexural strength |
MPa |
175 |
ISO 178 |
|
Modulus of elasticity |
MPa |
8000 |
ISO 178 |
|
Edgewise notched impact strength Charpy |
KJ/㎡ |
9 |
ISO 179 |
Electrical properties
|
Insulation resistance after the immersion in water |
Ω |
1.00E+08 |
IEC 60167 |
|
Flatwise electric strenght, 90℃in oil |
KV/mm |
4 |
IEC 60243-1 |
|
Breakdown voltage //, 90℃in oil |
KV |
20 |
IEC 60243-1 |
Thermal properties
|
Temperature index(TI) |
℃ |
135 |
IEC 60216 |
|
Coefficient of linear expansion // |
1.0E-6 / K |
18 |
VDE 0304 |
|
Thermal conductivity |
W/m.K |
0.2 |
DIN 52612 |
Physical properties
|
Density |
g/cm³ |
1.5 |
ISO 1183 |
|
Water absorption 24h 23 degree |
mg /% |
120/0.9 |
ISO 62 |
The product complies with the ROHS directive
The size and thickness can be made according to customer requirements
