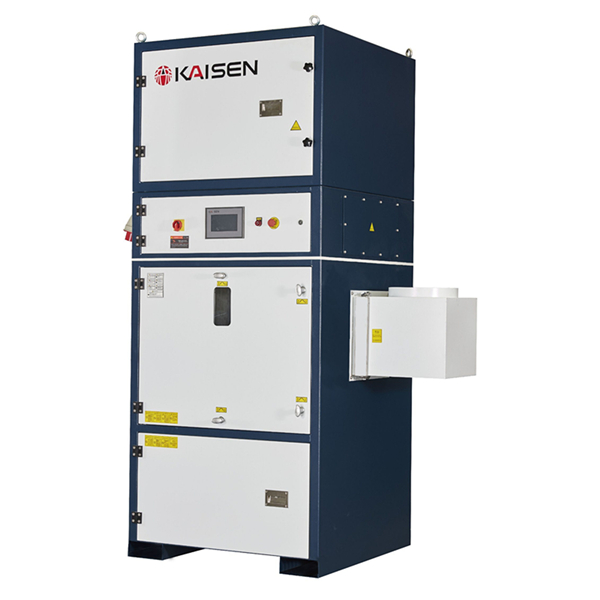

KSDC-8604A/A1 Centralized Dust Collector
Features:
● Compact and reasonable structure design
● Convenient dust removal, fully automatic dust removal, to ensure the continuity and efficiency of production
● Dust collection, container loading and unloading is convenient, the connection with the filter funnel is sealed, no dust leakage
● Intelligent control, optional automatic inverter, remote linkage function
● PLC control system control, humanized design of operation panel, easy to use
● The imported high-quality polyester filter material is used, and the surface of the filter material is covered with a high-precision PTFE membrane, which has higher filtration accuracy and higher filtration efficiency
Introduction:
86 series central dust collectors are the second generation of Kaisen centralized dust collector, which is more versatile. Upgraded PLC system supports multi-languages and easy to operate. Meanwhile, its compact design, small foot-print and high filtration efficiency are also favored by many laser machine manufacturers at home and abroad.
Parameters:
|
Model |
KSDC-8604A/A1 |
|
Fan Air Flow |
6500/8200±300 m3/h |
|
Inlet Air Flow |
4500/6800m3/h |
|
Motor Power |
5.5/7.5kW |
|
Power Supply |
3x380V/50Hz |
|
Filter Material |
Polyester + PTFE |
|
Filtration Area |
60㎡ |
|
Filtration Efficiency |
≥99.9% |
|
Filtration Precision |
≥0.3um |
|
Filter Cartridge |
4 Pcs |
|
Cleaning Method |
Automatic cleaning |
|
Compressed Air |
0.5~0.6Mpa |
|
Noise Level |
≤72±5 dB |
|
Dimension (WxDxH) |
1100×1100×2750mm |
|
Weight |
750±20kg |
Options & Accessories:
Independent electric control cabinet
Frequency converter
Explosion proof device
Anti-static filter cartridge
Ducting accessories
Spiral duct

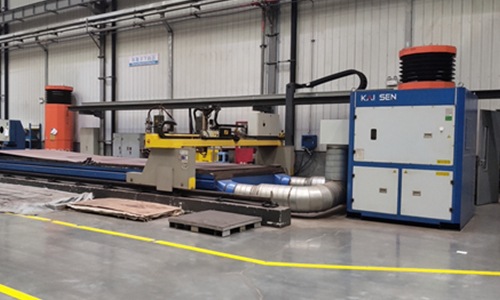

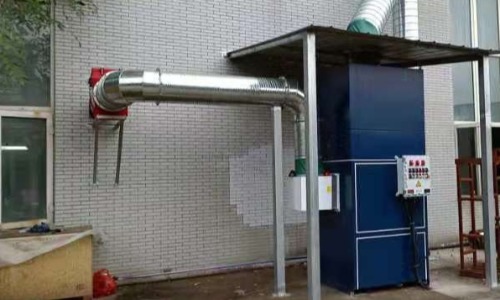

Applications:

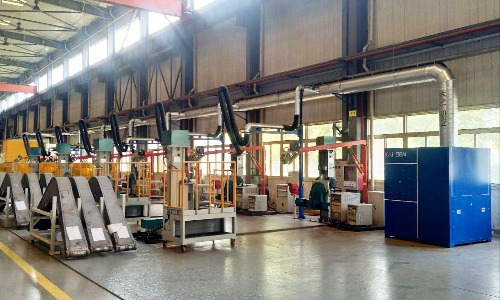

Multi-uints welding central dust collector

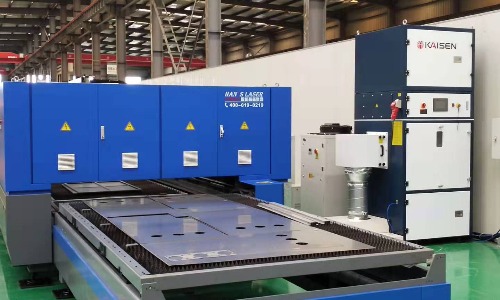

HAN'S Laser cutting dust collector case

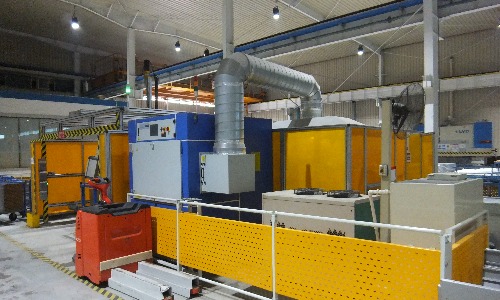

Robot welding house fume disposal solution

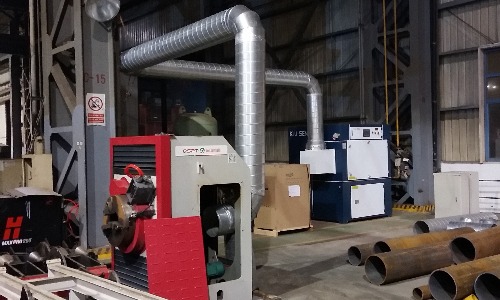

Steel pipe plasma cutting disposal solution
ATEX Type central dust collector case
Plasma cutting dust collector case
