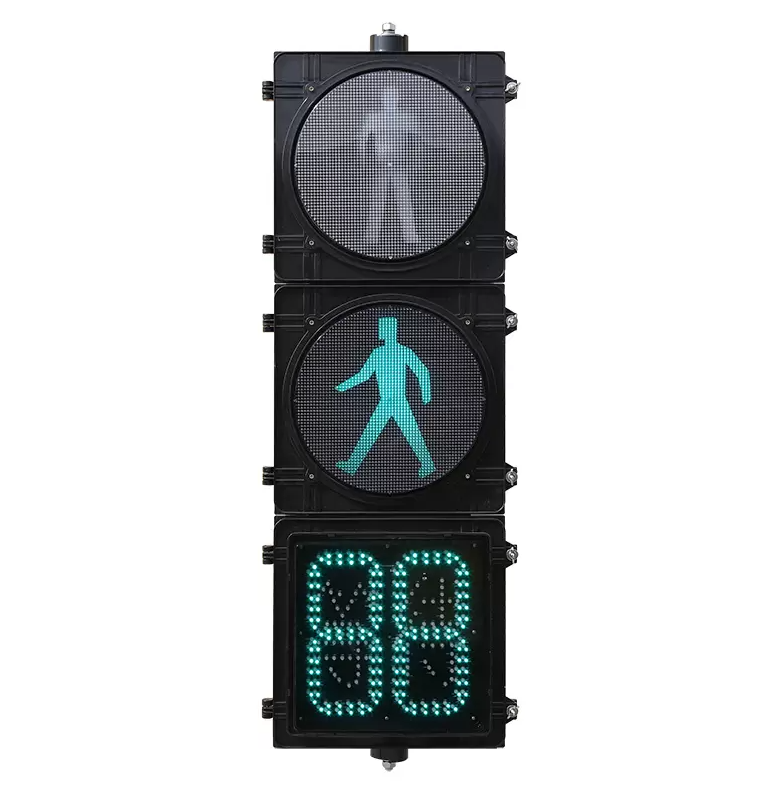

High Flux Pedestrian Traffic Light with Countdown Timer

Model:

The High Flux Pedestrian Traffic Light with Countdown Timer is is a three-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components.

Product Introduction:

The High Flux Pedestrian Traffic Light with Countdown Timer is is a three-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. The countdown display adopts a segmented-digit design. It is applicable to traffic signal control intersections designed for pedestrian crossings.

Functional Features

Three-layer optical processing – Eliminating glare and reducing light pollution

The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.

Three core technologies – Effectively extending service life

Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.

Compatibility design for enhanced maintenance efficiency

The built-in countdown timer supports three adaptive operating modes:  communication mode, trigger mode, and learning mode. Designed to be compatible with over 99% of mainstream domestic and international traffic signal controllers, this feature significantly reduces installation and post-installation commissioning efforts, thereby enhancing overall equipment maintenance efficiency.
