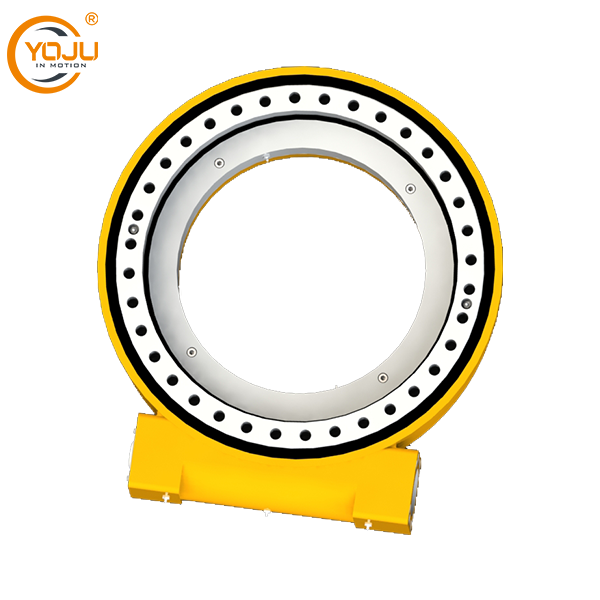

FWA21 Slewing Drive for High Torque Industrial Motion Systems

The FWA21 Slewing Drive developed by YOJU is designed for demanding industrial environments where sealing performance, torque stability, and long service life are essential. Built on an enclosed housing architecture with precision shaft sealing, this system achieves IP65 protection, effectively preventing dust and water ingress while reducing maintenance requirements in continuous operation conditions.

FWA21 Slewing Drive with Enclosed Housing IP65 Protection Design

The core structure of the FWA21 Slewing Drive is based on a fully enclosed housing system integrated with high-performance shaft seals. This design significantly improves environmental resistance compared to open-type configurations, making it suitable for outdoor and heavy-duty industrial applications.

With an IP65-rated protection level, the system maintains internal gear stability even in harsh environments with dust exposure, moisture, and variable weather conditions. This ensures that lubrication performance and gear engagement remain consistent over extended operating cycles, reducing downtime and maintenance frequency.

Worm Gear Technology in FWA21 Slewing Drive for Enhanced Torque Output

YOJU applies specialized worm gear engineering in the FWA21 Slewing Drive, combining optimized material selection with advanced surface heat treatment processes. The worm gear and worm shaft are designed to achieve high contact strength while minimizing wear under continuous load conditions.

This engineering approach allows the drive to deliver superior torque output with improved durability, making it suitable for applications requiring stable rotation under heavy mechanical stress. The hardened gear surfaces also help extend operational lifespan, especially in environments involving frequent start-stop cycles or variable load conditions.

Structural Design and Rotation Performance of FWA21 Slewing Drive

The FWA21 Slewing Drive supports 360-degree continuous rotation in both clockwise and counterclockwise directions, providing flexible motion control for complex mechanical systems. Depending on system requirements, users can select self-locking or non-self-locking configurations to match safety and control needs.

A key structural advantage is its modular configuration flexibility. The system supports metric and imperial installation standards, allowing seamless integration into different global equipment platforms. Input interfaces and mounting dimensions can also be customized to meet specific engineering requirements.

Additionally, single worm shaft and double worm shaft configurations are available. The double shaft design is particularly effective in increasing torque capacity, making it suitable for high-load applications where additional power density is required without expanding system size.

Performance Parameters of FWA21 Slewing Drive for Heavy Load Systems

The FWA21 Slewing Drive is engineered for high-load mechanical environments where both static and dynamic forces must be managed efficiently. Its performance parameters reflect its suitability for heavy-duty industrial use:

• Output Torque: 28.7 KN·M (21180 Ibf·Ft)

• Tilting Moment Torque: 203 KN·M (150 × 10³ Ibf·Ft)

• Holding Torque: 107 KN·M (78.9 × 10³ Ibf·Ft)

• Axial Load: 1600 KN (359.7 × 10³ Ibf)

• Radial Load: 650 KN (146 × 10³ Ibf)

• Reduction Ratio: 90:1

• Backlash: ≤0.1°

• Weight: 170 Kg

These parameters demonstrate strong load-bearing capability combined with precise rotational control. The low backlash performance ensures accurate positioning, which is critical in systems requiring controlled movement under high torque conditions.

Industrial Applications of FWA21 Slewing Drive in Heavy Machinery

The FWA21 Slewing Drive is widely applicable in industrial equipment that requires reliable rotational performance under harsh working conditions. Its structural strength and sealing capability make it suitable for mobile and stationary machinery where environmental exposure and mechanical stress coexist.

Typical application environments include truck-mounted cranes, aerial working platforms, drilling machinery, and rotating platform systems. In each case, the drive functions as a core motion component responsible for transferring input torque into controlled rotational output while maintaining system stability under load fluctuations.

Engineering Advantages of FWA21 Slewing Drive in Long-Term Operation

One of the key advantages of the FWA21 Slewing Drive is its long-term operational stability. The combination of enclosed housing, precision worm gear processing, and heat-treated contact surfaces significantly reduces wear rates during continuous operation.

The sealed design also helps maintain lubrication integrity, which is critical for sustaining gear efficiency and reducing friction-related energy loss. Over time, this results in improved system reliability and reduced maintenance intervals, especially in outdoor or high-dust environments.

The availability of customizable configurations further enhances engineering flexibility, allowing system designers to optimize installation based on torque requirements, space constraints, and control logic.

Conclusion

The YOJU FWA21 Slewing Drive represents a robust engineering solution for heavy-duty rotational systems requiring high torque, environmental protection, and long service life. Its IP65-rated enclosed housing, advanced worm gear technology, and flexible structural configurations make it suitable for a wide range of industrial applications where reliability and precision are critical.
