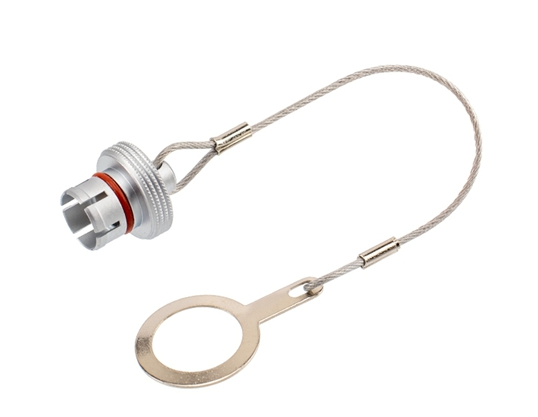

F Series Plug Caps
– Safe six flap push-pull self-locking system – Can meet the requirements of water tight and air tight – High density installation to save space – Rugged housing desigh for extremely harsh working
TECHNICAL PARAMATERS
| Coupling： | Push pull self-locking |
| Operating temperature： | -55℃ ~ +250℃ |
| Humidity： | Up to 95% at 60°C/140°F |
| Anti-vibration performance： | 15g [10-2000 Hz] |
| Impact resistance： | 100g, 6ms |
| Salt spray corrosion test： | >144 h |
| Protection level： | IP50 |
| Insulation impedance： | ≥100 mΩ |
| Shielding performance： | >95dB (10MHz); >80dB (1GHz) |
| Mechanical life： | >5000 Cycles |
– Safe six flap push-pull self-locking system
– Can meet the requirements of water tight and air tight
– High density installation to save space
– Rugged housing desigh for extremely harsh working environment
– 360° shielding provides a full range of EMC protection (Anti electromagnetic interference)
– A variety of key options, to avoid mixing between similar connectors
