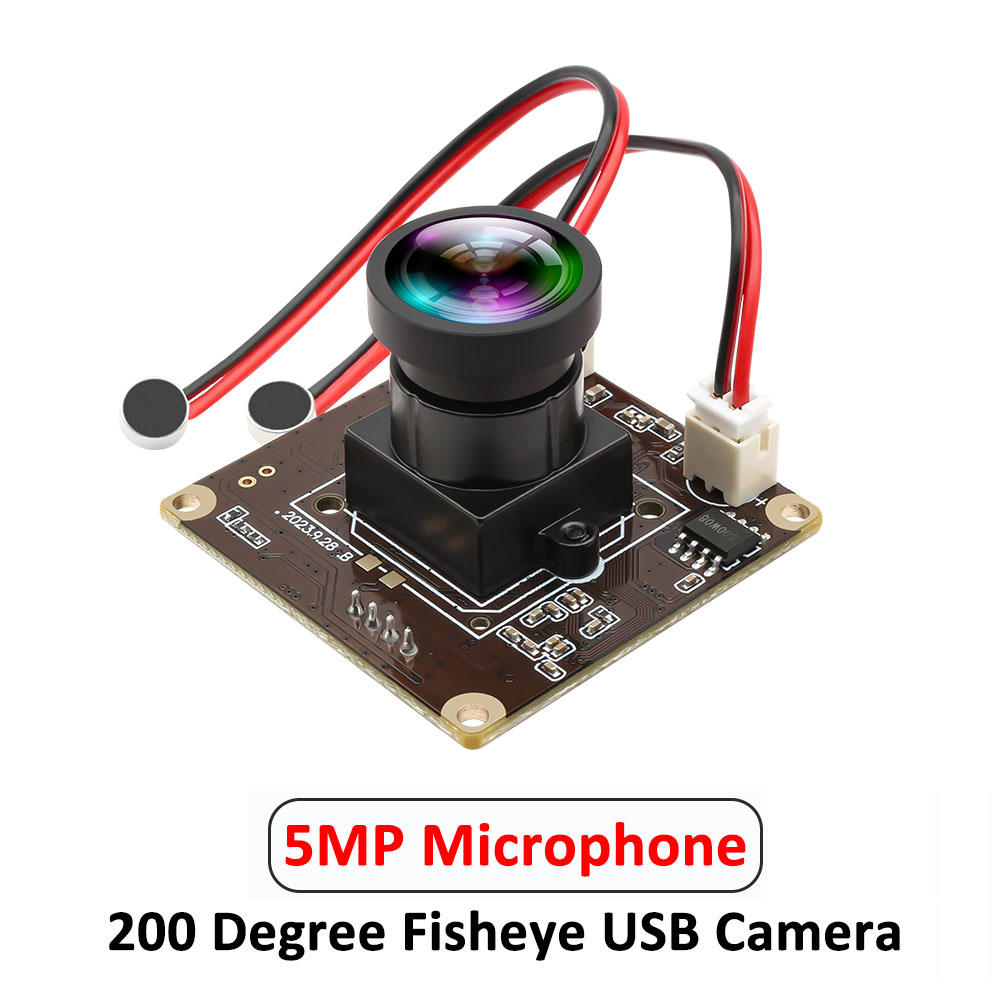

ELP 5MP Fisheye USB Camera Module 1944P 30fps Wide Angle 200 Degree and Dual Microphones Mini Lightburn Camera for Surveillance

This ELP 5MP USB Camera Module with 2pcs Microphone boasts a advanced 1/2.8″ CMOS IMX335 image sensor

Compare
Category:


* Sensor: With industrial grade high quality 1/2.8" CMOS IMX335 Sensor;

* With 2pcs Microphone

* Resolution: Full HD 2592*1944P Color USB Camera Module;

* High Speed: High frame rate, MJPEG：2592×1944 @ 30fps MJPEG / 1920×1080 @ 30fps MJPEG, etc.

* Megapixel Lens: High Quality lenses with no distortion lens

* Mini Size: Small outline mini size 38*38mm for embedded application;

* High Quality Image: Super Image reality, real color reproduction, without interpolation;

* UVC Support: Free Driver , Plug and Play, easily used on different systems;

* Support Systems: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…;

* OTG Support: can be used on Android smartphone, recommended app "USB Camera".

* Wide Application: Wildly used for Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring,

   environmental monitoring, etc

Model

ELP-USB500W08-L185 (HFOV 200 degree)


Optional Model:

ELP-USB500W08-L170 (HFOV 138 degree)

Sensor

CMOS IMX335

Sensor Size

1/2.8inch

Pixel Size

2.0um

Image Area

5.8mm x 4.75mm

Max. Resolution

2592(H) X 1944(V)  2Megapixel

Default Resolution

2592(H) X1944(V)

Compression Format

MJPEG/ YUY2(YUYV)

Resolution & Frame Rate

 2592×1944 MJPEG 30fps/ YUY2 1fps

 2048×1536 MJPEG 30fps/ YUY2 3fps

 1920×1080 MJPEG 30fps/ YUY2 3fps

 1600×1200 MJPEG 30fps/ YUY2 5fps

 1280×960 MJPEG 30fps/ YUY2 5fps

 1280×720 MJPEG 30fps / YUY2 5fps

 1024 x 768 MJPEG 30fps/ YUY2 5fps

 800 x 600 MJPEG 30fps / YUY2 20fps

 640×480 MJPEG 30fps / YUY2 30fps

 320×240 MJPEG 30fps / YUY2 30fps

Min Illumination

0.2Lux

Shutter Type

Rolling Shutter

Connecting Port Type

USB2.0 High Speed

Free Drive Protocol

USB Video Class (UVC)

AEC

Support

AWB

Support

AGC

<span style="box-sizing: border-box; overflow-wrap: break-word; margin: 0px; padding: 0px; font-family: arial, hel
