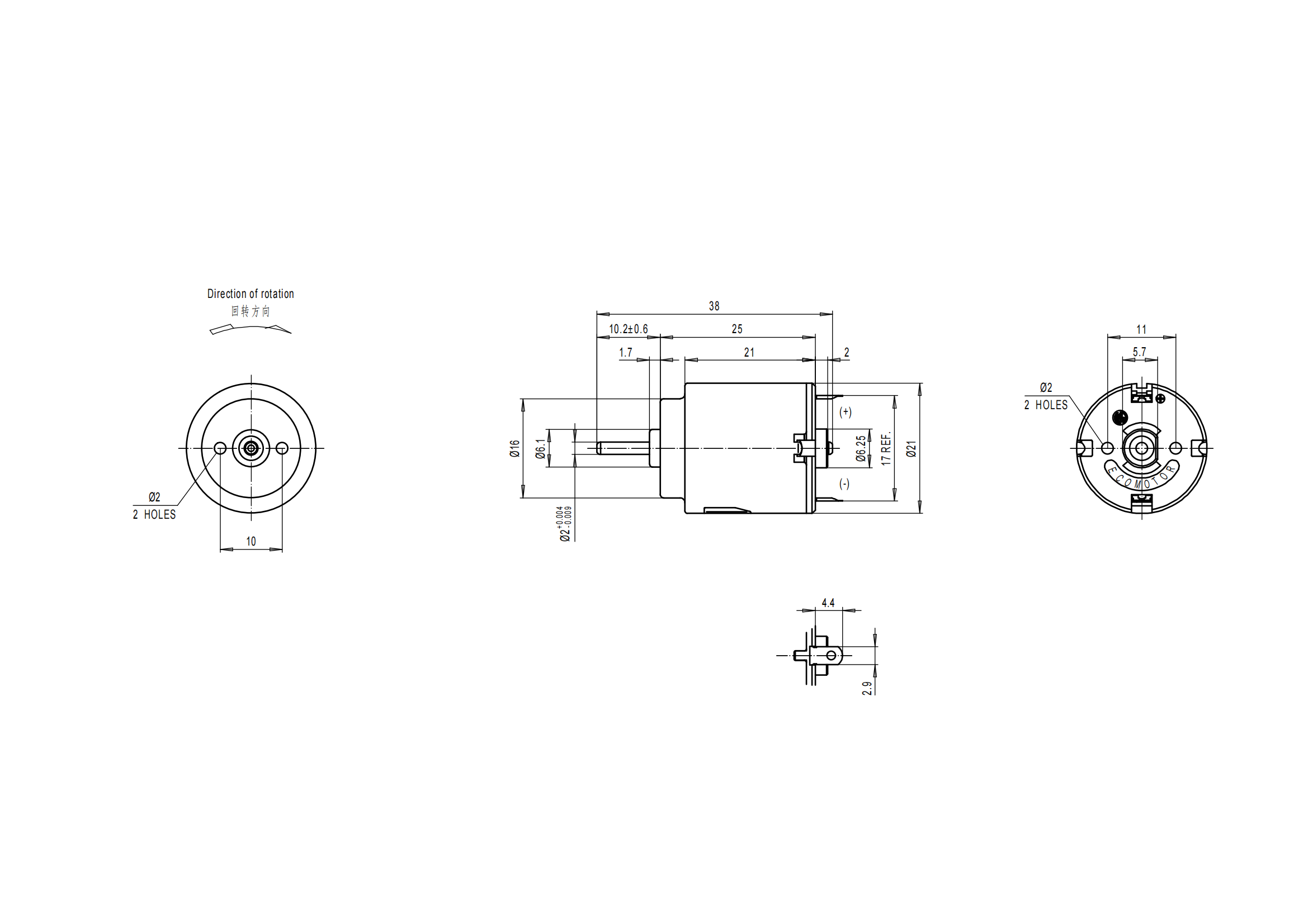

R140U Brushed DC Micro Motor Drawings And Product Performance Are As Follows:

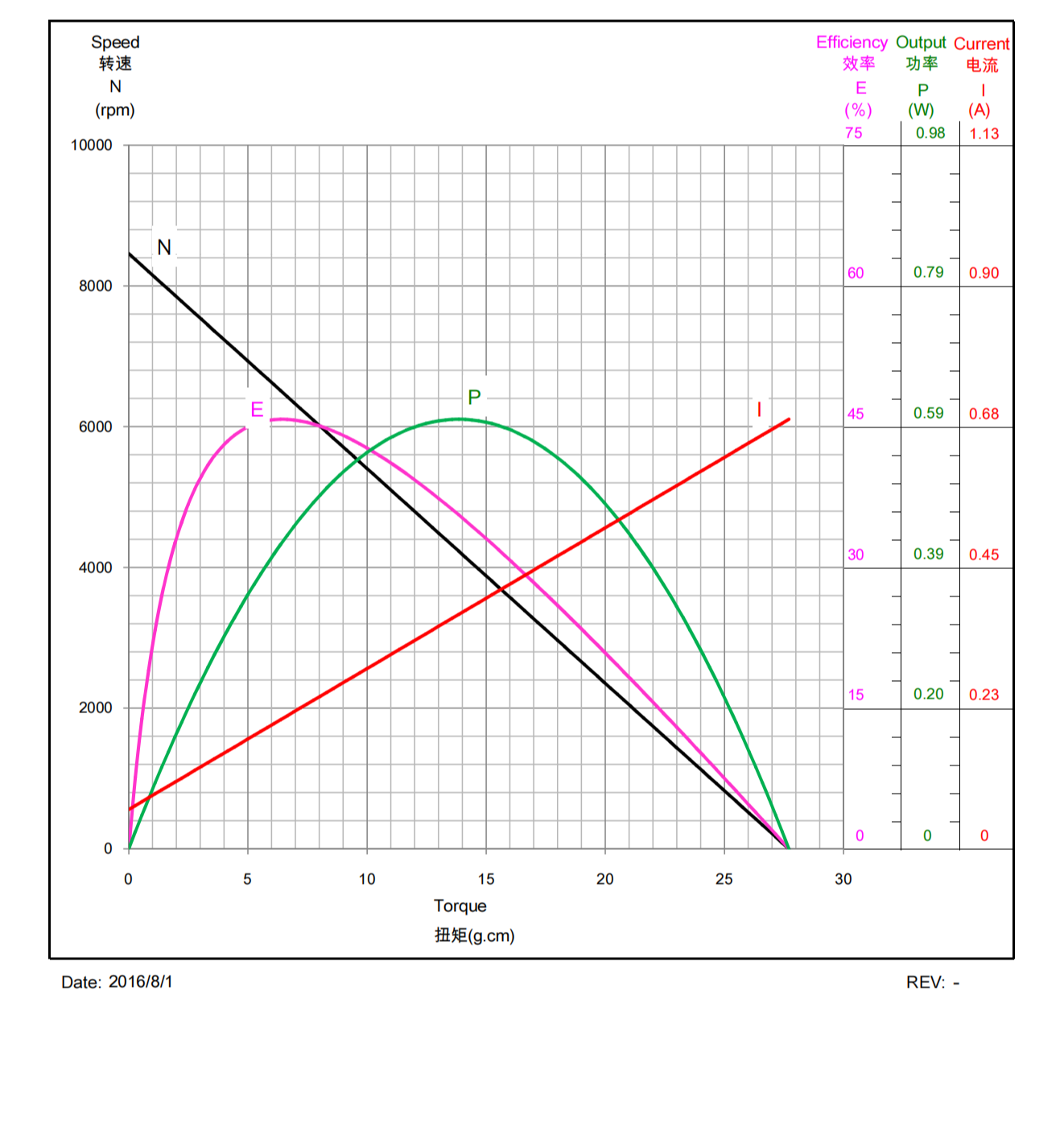

R140U-NN-12190 4.5V Toy Brushed Miniature DC Motor Performance Table
|
Model/ |
Voltage |
No Load |
At Maximum Efficiency |
At Maximum Output |
Stall |
||||||||
|
Current |
Speed |
Current |
Speed |
Torque |
Efficiency |
Current |
Speed |
Torque |
Output |
Current |
Torque |
||
|
V |
A |
rpm |
A |
rpm |
g.cm |
% |
A |
rpm |
g.cm |
W |
A |
g.cm |
|
|
R140U-NN-12190 |
4.5 |
0.063 |
8459 |
0.208 |
6493 |
6.4 |
45.8 |
0.375 |
4230 |
13.9 |
0.60 |
0.687 |
27.7 |

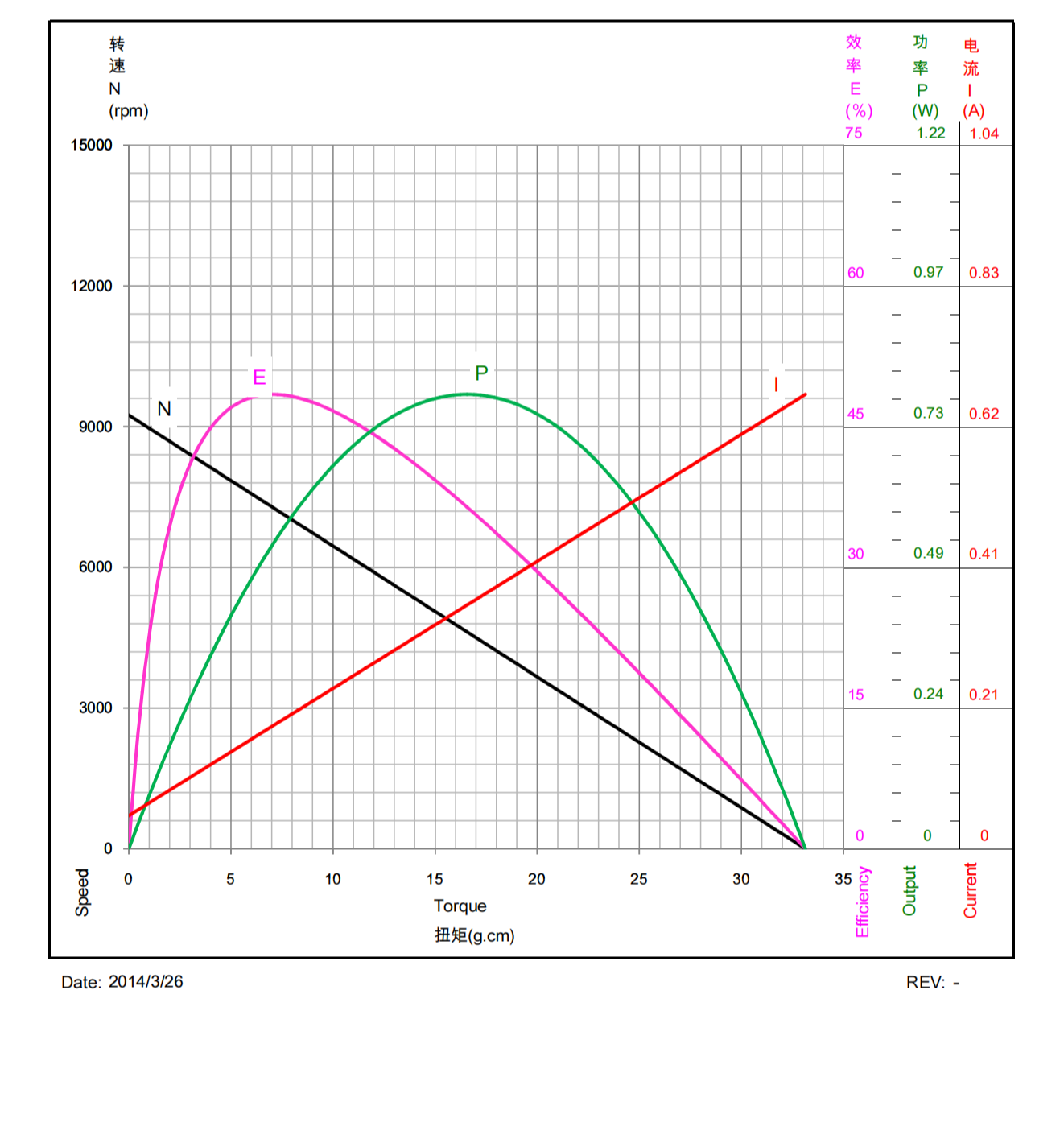

R140U-NN-12240 6V Toy Brushed Miniature DC Motor Performance Table
|
Model/ |
Voltage |
No Load |
At Maximum Efficiency |
At Maximum Output |
Stall |
||||||||
|
Current |
Speed |
Current |
Speed |
Torque |
Efficiency |
Current |
Speed |
Torque |
Output |
Current |
Torque |
||
|
V |
A |
rpm |
A |
rpm |
g.cm |
% |
A |
rpm |
g.cm |
W |
A |
g.cm |
|
|
R140U-NN-12240 |
6.0 |
0.049 |
9247 |
0.181 |
7279 |
7.1 |
48.4 |
0.359 |
4624 |
16.6 |
0.79 |
0.670 |
33.1 |
