3G Intelligent Fin Machine

Selling Units:Set/Sets

Package Type:Pallet/Case

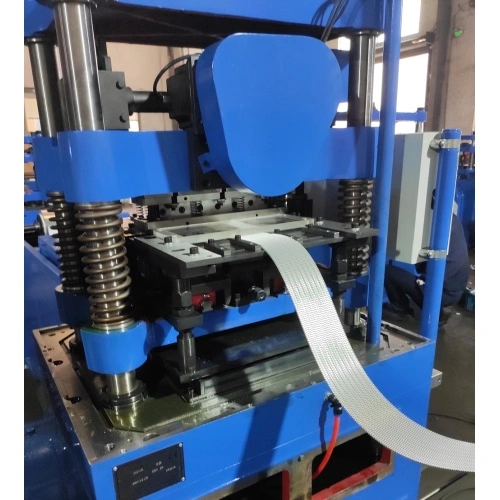

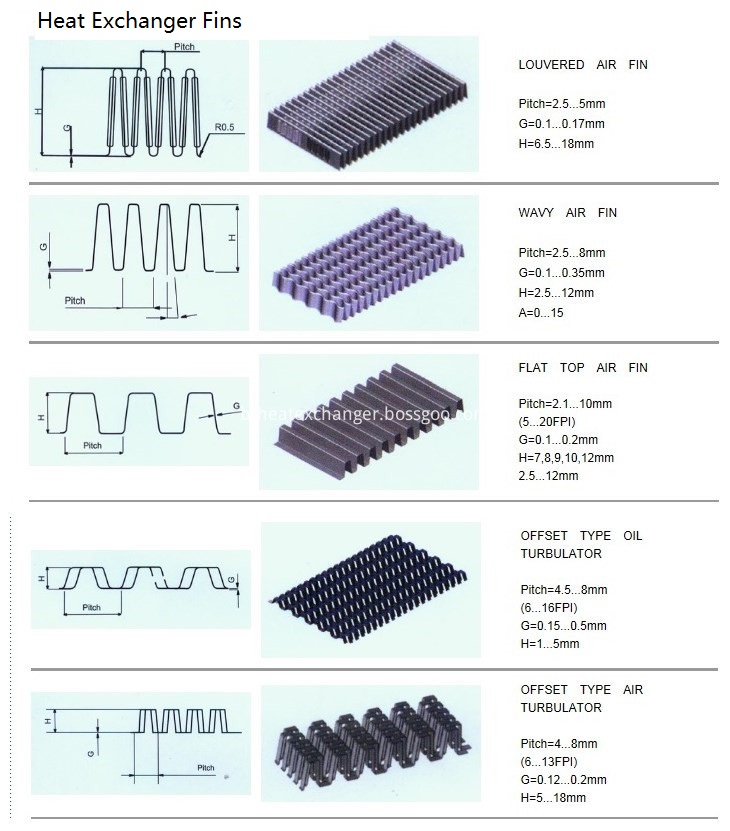

The Fin Machine is a device that directly processes the foil into various types of heat transfer fins. On the basis of the first and second generation fin machine, the third generation 3G fin machine mainly consists of 5 parts: automatic feeder, oiling device, Host machine stamping, servo control fin cutting machine and independent electrical control box. The full set of 3G automatic fin production line adopts PLC intelligent automatic control, which has the functions of automatic feeding, automatic fin forming, automatic fin cutting and electrical adjustment of mold installation. When producing different height fins with the same mold (suitable for the same fin pitch and different heights), the data can be set on the display screen for quick positioning and easy operation which greatly saves the time of debugging molds.

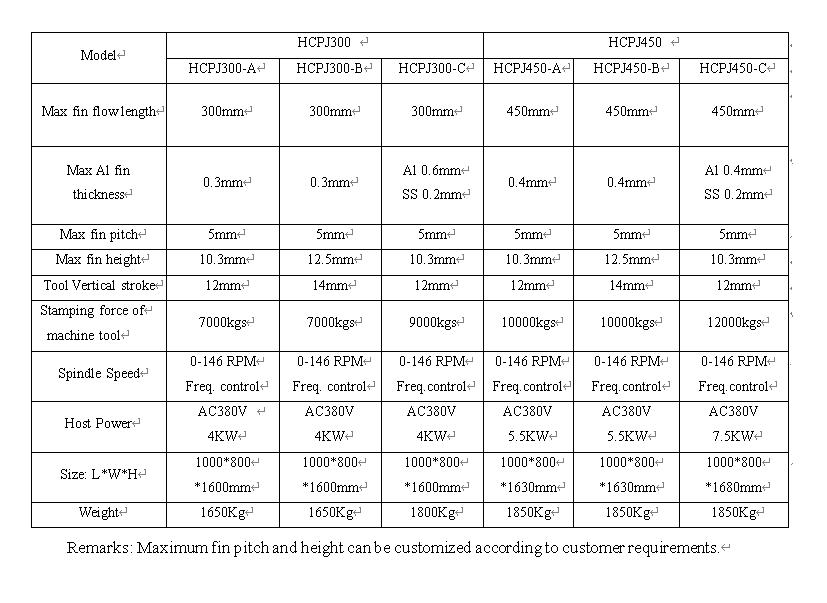

Fin Forming Machine- Main technical parameters and specifications
